QQE MT4 MT5指標[MT5公式]

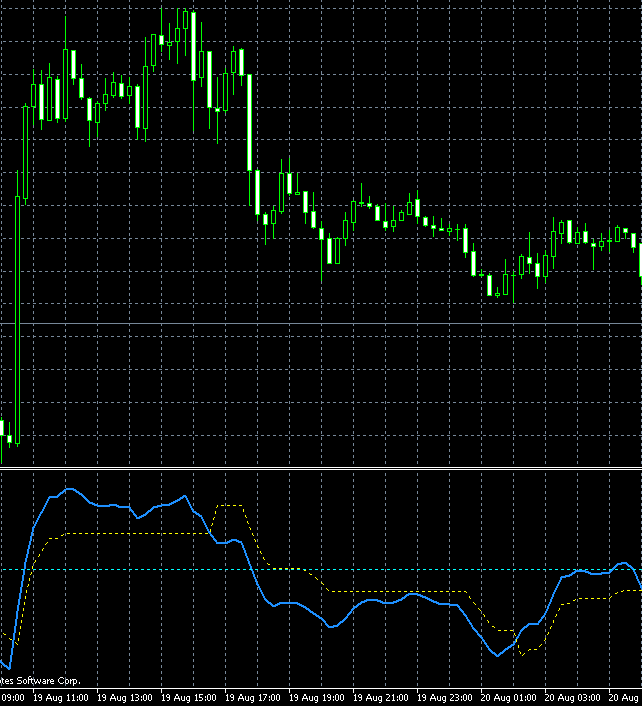

該指標適用于MT4和MT5。全稱為Quantitative Qualitative Estimation，是一種非常復雜的基于平滑相對強弱指標的算法的指標。使用該指標，會在一個獨立的窗口看到2條線 —一快線，一慢線。還有一個重要的用于發送信號指標水平（50）。您可以啟用文本、聲音和電子郵件示警。

輸入參數：

SF (默認 = 5) — 一種平滑系數。

AlertLevel (默認 = 50) — 示警的指標水平。不建議進行更改。

MsgAlerts (默認 = true) — 如果選擇為true，將提供消息示警。

SoundAlerts (默認 = true) — 如果選擇為true，將使用聲音示警。

SoundAlertFile (默認 = "alert.wav") — 一個聲音示警的聲音的文件名稱。

eMailAlerts (默認 = false) — 如果選擇為true，那么將按照MetaTrader電子郵件的設置發送電子郵件示警。

在原始QQE指標交易系統中，當藍線穿過50的水平時以及穿過黃（點）線時發出信號。但是建議使用如下交易信號：當藍線自下方穿過黃線而且兩者均低于50水平時，做多；當藍線自上方穿過黃線而且兩者均高于50水平時，做空。

標簽:

MT4源碼：
//+------------------------------------------------------------------+ //| Qualitative Quantitative Estimation Indicator with Alerts | //| Copyright ? 2006 Roman Ignatov | //| mailto:roman.ignatov@gmail.com | //| | //| V1. Completed by Roman Ignatov 2006 (roman.ignatov@gmail.com) | //| V2. Completed by Tim Hyder 2008 | //| a) Complete Code rewrite | //| b) Added Audio, Visual and eMail alerts | //| | //| Copyright ? 2008, Tim Hyder aka Hiachiever | //| | //| PO BOX 768, Hillarys, Western Australia, Australia, 6923 | //| | //| GIFTS AND DONATIONS ACCEPTED | //| All my indicators should be considered donationware. That is | //| you are free to use them for your personal use, and are | //| under no obligation to pay for them. However, if you do find | //| this or any of my other indicators help you with your trading | //| then any Gift or Donation as a show of appreciation is | //| gratefully accepted. | //| | //| Gifts or Donations also keep me motivated in producing more | //| great free indicators. :-) | //| | //| PayPal - hiachiever@gmail.com | //+------------------------------------------------------------------+ #property copyright "Copyright ? 2008 Tim Hyder" #property link "mailto:hiachiever@gmail.com" //---- #define vers "09.Feb.2008" #define major 1 #define minor 0 //---- #property indicator_separate_window #property indicator_buffers 2 #property indicator_color1 DodgerBlue #property indicator_style1 STYLE_SOLID #property indicator_width1 2 #property indicator_color2 Yellow #property indicator_style2 STYLE_DOT #property indicator_level1 50 #property indicator_levelcolor Aqua #property indicator_levelstyle STYLE_DOT //---- extern string NOTESETTINGS=" --- INDICATOR SETTINGS ---"; extern int SF=5; extern string NOTEALERTS=" --- Alerts ---"; extern int AlertLevel=50; extern bool MsgAlerts=true; extern bool SoundAlerts=true; extern string SoundAlertFile="alert.wav"; extern bool eMailAlerts=false; //---- int RSI_Period=14; int Wilders_Period; int StartBar, LastAlertBar; datetime LastAlertTime; double TrLevelSlow[]; double AtrRsi[]; double MaAtrRsi[]; double Rsi[]; double RsiMa[]; //+------------------------------------------------------------------+ //| | //+------------------------------------------------------------------+ int init() { Wilders_Period=RSI_Period * 2 - 1; if (Wilders_Period < SF) StartBar=SF; else StartBar=Wilders_Period; //---- IndicatorBuffers(6); SetIndexBuffer(0, RsiMa); SetIndexStyle(0, DRAW_LINE, STYLE_SOLID, 2); SetIndexLabel(0, "Value 1"); SetIndexDrawBegin(0, StartBar); SetIndexStyle(1, DRAW_LINE, STYLE_DOT); SetIndexBuffer(1, TrLevelSlow); SetIndexLabel(1, "Value 2"); SetIndexDrawBegin(1, StartBar); SetIndexBuffer(2, AtrRsi); SetIndexBuffer(3, MaAtrRsi); SetIndexBuffer(4, Rsi); IndicatorShortName(StringConcatenate("QQE(", SF, ")")); //---- LastAlertBar=Bars-1; return(0); } //+------------------------------------------------------------------+ //| | //+------------------------------------------------------------------+ int start() { int counted, i; double rsi0, rsi1, dar, tr, dv; //---- if(Bars<=StartBar) return(0); //---- counted=IndicatorCounted(); if(counted < 1) for(i=Bars - StartBar; i < Bars; i++) { TrLevelSlow[i]=0.0; AtrRsi[i]=0.0; MaAtrRsi[i]=0.0; Rsi[i]=0.0; RsiMa[i]=0.0; } counted=Bars - counted - 1; //---- for(i=counted; i>=0; i--) Rsi[i]=iRSI(NULL, 0, RSI_Period, PRICE_CLOSE, i); for(i=counted; i>=0; i--) { RsiMa[i]=iMAOnArray(Rsi, 0, SF, 0, MODE_EMA, i); AtrRsi[i]=MathAbs(RsiMa[i + 1] - RsiMa[i]); } for(i=counted; i>=0; i--) MaAtrRsi[i]=iMAOnArray(AtrRsi, 0, Wilders_Period, 0, MODE_EMA, i); //---- i=counted + 1; tr=TrLevelSlow[i]; rsi1=iMAOnArray(Rsi, 0, SF, 0, MODE_EMA, i); while(i > 0) { i--; rsi0=iMAOnArray(Rsi, 0, SF, 0, MODE_EMA, i); dar=iMAOnArray(MaAtrRsi, 0, Wilders_Period, 0, MODE_EMA, i) * 4.236; dv=tr; if (rsi0 < tr) { tr=rsi0 + dar; if (rsi1 < dv) if (tr > dv) tr=dv; } else if (rsi0 > tr) { tr=rsi0 - dar; if (rsi1 > dv) if (tr < dv) tr=dv; } TrLevelSlow[i]=tr; rsi1=rsi0; } if ((RsiMa[i+1]<AlertLevel && RsiMa[i]>AlertLevel) ||(RsiMa[i+1]>AlertLevel && RsiMa[i]<AlertLevel) ) { string base=Symbol()+ ", TF: " + TF2Str(Period()); string Subj=base + ", " + AlertLevel + " level Cross Up"; if (RsiMa[i+1]>AlertLevel && RsiMa[i]<AlertLevel) Subj=base + " " + AlertLevel + " level Cross Down"; string Msg=Subj + " @ " + TimeToStr(TimeLocal(),TIME_SECONDS); if (Bars>LastAlertBar) { LastAlertBar=Bars; DoAlerts(Msg,Subj); } } //---- return(0); } //+------------------------------------------------------------------+ //| | //+------------------------------------------------------------------+ void DoAlerts(string msgText,string eMailSub) { if (MsgAlerts) Alert(msgText); if (SoundAlerts) PlaySound(SoundAlertFile); if (eMailAlerts) SendMail(eMailSub, msgText); } //+------------------------------------------------------------------+ //| | //+------------------------------------------------------------------+ string TF2Str(int period) { switch(period) { case PERIOD_M1: return("M1"); case PERIOD_M5: return("M5"); case PERIOD_M15: return("M15"); case PERIOD_M30: return("M30"); case PERIOD_H1: return("H1"); case PERIOD_H4: return("H4"); case PERIOD_D1: return("D1"); case PERIOD_W1: return("W1"); case PERIOD_MN1: return("MN"); } return(Period()); } //+------------------------------------------------------------------+
點擊復制上述代碼粘貼到到公式管理器

MT5源碼：//+------------------------------------------------------------------+ //| QQE.mq5 | //| Copyright ? 2010, EarnForex | //| http://www.tumamayizhan.com| //| Based on version by Tim Hyder (2008) | //| Based on version by Roman Ignatov (2006) | //+------------------------------------------------------------------+ #property copyright "www.tumamayizhan.com" #property link "http://www.tumamayizhan.com" #property version "1.0" #property description "QQE - Qualitative Quantitative Estimation." #property description "Calculated as two indicators:" #property description "1) MA on RSI" #property description "2) Difference of MA on RSI and MA of MA of ATR of MA of RSI" #property description "The signal for buy is when blue line crosses level 50 from below" #property description "after crossing the yellow line from below." #property description "The signal for sell is when blue line crosses level 50 from above" #property description "after crossing the yellow line from above." #property indicator_separate_window #property indicator_buffers 6 #property indicator_plots 2 #property indicator_width1 2 #property indicator_color1 DodgerBlue #property indicator_type1 DRAW_LINE #property indicator_style1 STYLE_SOLID #property indicator_width2 1 #property indicator_color2 Yellow #property indicator_type2 DRAW_LINE #property indicator_style2 STYLE_DOT #property indicator_level1 50 #property indicator_levelcolor Aqua #property indicator_levelstyle STYLE_DOT // Inputs input int SF = 5; //Smoothing Factor input int AlertLevel = 50; input bool MsgAlerts = true; input bool SoundAlerts = true; input string SoundAlertFile = "alert.wav"; input bool eMailAlerts = false; // Variables int RSI_Period = 14; int Wilders_Period; int StartBar, LastAlertBar; datetime LastAlertTime; bool FirstTime = true; // Buffers double TrLevelSlow[]; double AtrRsi[]; double MaAtrRsi[]; double Rsi[]; double RsiMa[]; double MaMaAtrRsi[]; //+------------------------------------------------------------------+ //| Custom indicator initialization function | //+------------------------------------------------------------------+ void OnInit() { Wilders_Period = RSI_Period * 2 - 1; if (Wilders_Period < SF) StartBar = SF; else StartBar = Wilders_Period; SetIndexBuffer(0, RsiMa, INDICATOR_DATA); SetIndexBuffer(1, TrLevelSlow, INDICATOR_DATA); SetIndexBuffer(2, AtrRsi, INDICATOR_CALCULATIONS); SetIndexBuffer(3, MaAtrRsi, INDICATOR_CALCULATIONS); SetIndexBuffer(4, Rsi, INDICATOR_CALCULATIONS); SetIndexBuffer(5, MaMaAtrRsi, INDICATOR_CALCULATIONS); ArraySetAsSeries(RsiMa, true); ArraySetAsSeries(TrLevelSlow, true); ArraySetAsSeries(AtrRsi, true); ArraySetAsSeries(MaAtrRsi, true); ArraySetAsSeries(Rsi, true); ArraySetAsSeries(MaMaAtrRsi, true); PlotIndexSetString(0, PLOT_LABEL, "Fast RSI MA"); PlotIndexSetString(1, PLOT_LABEL, "Slow RSI MA"); PlotIndexSetInteger(0, PLOT_DRAW_BEGIN, StartBar); PlotIndexSetInteger(1, PLOT_DRAW_BEGIN, StartBar); IndicatorSetString(INDICATOR_SHORTNAME, "QQE(" + IntegerToString(SF) + ")"); LastAlertBar = Bars(Symbol(), Period()) - 1; } //+------------------------------------------------------------------+ //| Custom QQE | //+------------------------------------------------------------------+ int OnCalculate(const int rates_total, const int prev_calculated, const datetime &time[], const double &open[], const double &high[], const double &low[], const double &close[], const long &tick_volume[], const long &volume[], const int &spread[]) { int counted, i; double rsi0, rsi1, dar, tr, dv; if (rates_total <= StartBar) return(0); if (prev_calculated == 0) FirstTime = true; counted = prev_calculated; if (counted < 1) for (i = rates_total - StartBar; i < rates_total; i++) { TrLevelSlow[i] = 0.0; AtrRsi[i] = 0.0; MaAtrRsi[i] = 0.0; Rsi[i] = 0.0; RsiMa[i] = 0.0; MaMaAtrRsi[i] = 0.0; } counted = rates_total - counted; if (counted - 2 >= 0) counted -= 2; int myRSI = iRSI(NULL, 0, RSI_Period, PRICE_CLOSE); if (CopyBuffer(myRSI, 0, 0, counted + 2, Rsi) != counted + 2) return(0); // Fills "counted" cells of RsiMA with EMA of Rsi CalculateEMA(counted + 1, SF, Rsi, RsiMa); for (i = counted; i >= 0; i--) AtrRsi[i] = MathAbs(RsiMa[i + 1] - RsiMa[i]); // Fills "counted" cells of MaAtrRsi with EMA of AtrRsi CalculateEMA(counted, Wilders_Period, AtrRsi, MaAtrRsi); i = counted + 1; tr = TrLevelSlow[i]; rsi1 = RsiMa[i]; CalculateEMA(counted, Wilders_Period, MaAtrRsi, MaMaAtrRsi); while (i > 0) { i--; rsi0 = RsiMa[i]; dar = MaMaAtrRsi[i] * 4.236; dv = tr; if (rsi0 < tr) { tr = rsi0 + dar; if ((rsi1 < dv) && (tr > dv)) tr = dv; } else if (rsi0 > tr) { tr = rsi0 - dar; if ((rsi1 > dv) && (tr < dv)) tr = dv; } TrLevelSlow[i] = tr; rsi1 = rsi0; } if (((RsiMa[i + 1] < AlertLevel) && (RsiMa[i] > AlertLevel)) || ((RsiMa[i + 1] > AlertLevel) && (RsiMa[i] < AlertLevel))) { string base = Symbol() + ", TF: " + TF2Str(Period()); string Subj = base + ", " + IntegerToString(AlertLevel) + " level Cross Up"; if ((RsiMa[i + 1] > AlertLevel) && (RsiMa[i] < AlertLevel)) Subj = base + " " + IntegerToString(AlertLevel) + " level Cross Down"; string Msg = Subj + " @ " + TimeToString(TimeLocal(), TIME_SECONDS); if (rates_total > LastAlertBar) { LastAlertBar = rates_total; DoAlerts(Msg, Subj); } } return(rates_total); } //+------------------------------------------------------------------+ //| Sends the alert signals according to user options | //+------------------------------------------------------------------+ void DoAlerts(string msgText, string eMailSub) { if (MsgAlerts) Alert(msgText); if (SoundAlerts) PlaySound(SoundAlertFile); if (eMailAlerts) SendMail(eMailSub, msgText); } //+------------------------------------------------------------------+ //| Converts timeframe period to string | //+------------------------------------------------------------------+ string TF2Str(int period) { switch(period) { case PERIOD_M1: return("M1"); case PERIOD_M5: return("M5"); case PERIOD_M15: return("M15"); case PERIOD_M30: return("M30"); case PERIOD_H1: return("H1"); case PERIOD_H4: return("H4"); case PERIOD_D1: return("D1"); case PERIOD_W1: return("W1"); case PERIOD_MN1: return("MN"); } return(IntegerToString(Period())); } //+------------------------------------------------------------------+ //| Exponential Moving Average | //| Fills the buffer array with EMA values. | //+------------------------------------------------------------------+ void CalculateEMA(int begin, int period, const double &price[], double &result[]) { double SmoothFactor = 2.0 / (1.0 + period); int start; //First time if (FirstTime) { result[begin] = price[begin]; start = begin - 1; FirstTime = false; } else start = begin; for(int i = start; i >= 0; i--) result[i] = price[i] * SmoothFactor + result[i + 1] * (1.0 - SmoothFactor); } //+------------------------------------------------------------------+
點擊復制上述代碼粘貼到到公式管理器
